Introduction

Yer is an octave-reduced EFG (Euler-Fokker genus) of 11, 13, 17, and 19. As such it is a 2.11.13.17.19 limit just intonation tuning (ignoring the 3rd, 5th, and 7th harmonics) which is octave-repeating.

Yer has 16 pitches from the EFG, and 2 additional pitches are optional to include; these pitches are very close to other pitches already in the system (off by comma-sized amounts) and are useful as inflections or points to comma-shift on.

Yer was developed by Douglas Blumeyer as a system to explore the unnoticeable comma 2432/2431, the Blumeyer comma, which appears twice as a step in the scale.

name 11 13 17 19 EFG composition frequency multiplier (definition) frequency multiplier (decimal) pitch (¢) EHEJIPN (on C)
a 1 1/1 1 0 Yer HEWM 1.png
(q) 11⋅11⋅17 2057/2048 1.00439453125 7.5912942 Yer HEWM 11 11 17.png
o 13⋅17⋅19 4199/4096 1.025146484 42.9960874 Yer HEWM 13 17 19.png
d 17 17/16 1.0625 104.9554095 Yer HEWM 17.png
f 11⋅13 143/128 1.1171875 191.8456041 Yer HEWM 11 13.png
l 11⋅13⋅17 2431/2048 1.187011719 296.8010136 Yer HEWM 11 13 17.png
e 19 19/16 1.1875 297.5130161 Yer HEWM 19.png
k 17⋅19 323/256 1.26171875 402.4684256 Yer HEWM 17 19.png
m 11⋅13⋅19 2717/2048 1.326660156 489.3586203 Yer HEWM 11 13 19.png
b 11 11/8 1.375 551.3179424 Yer HEWM 11.png
(r) (13⋅19)/11 247/176 1.40340909091 586.7227355 Yer HEWM 13 19 11.png
p 11⋅13⋅17⋅19 46189/32768 1.409576416 594.3140298 Yer HEWM 11 13 17 19.png
g 11⋅17 187/128 1.4609375 656.2733519 Yer HEWM 11 17.png
c 13 13/8 1.625 840.5276618 Yer HEWM 13.png
h 11⋅19 209/128 1.6328125 848.8309585 Yer HEWM 11 19.png
i 13⋅17 221/128 1.7265625 945.4830713 Yer HEWM 13 17.png
n 11⋅17⋅19 3553/2048 1.734863281 953.786368 Yer HEWM 11 17 19.png
j 13⋅19 247/128 1.9296875 1138.040678 Yer HEWM 13 19.png

The diagrams throughout this wiki entry were designed by Douglas Blumeyer. The same four colors are consistently associated with the four harmonics: green is 11, orange is 13, cyan is 17, and magenta is 19.

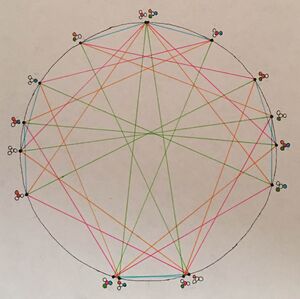

Yer - cycle view

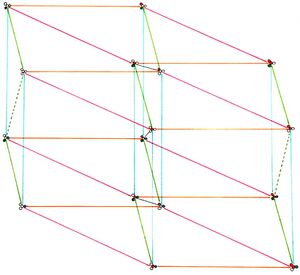

Yer - lattice view

Yer features a minor third of 19:16 and a minor second 17:16.

EFG as combination of CPS's

Every pitch in the system is a combination of either zero, one, two, three, or four of 11, 13, 17, or 19, for a total of 1 + 4 + 6 + 4 + 1 = 16 pitches. In other words it is the powerset of {11, 13, 17, 19}. If familiar with Erv Wilson’s Combination Product Sets, or CPS's, it may help to think of an Euler-Fokker Genus as the intersection of the choose-1 tetrany, the choose-2 hexany, and the choose-3 tetrany, plus the unison, plus 11 * 13 * 17 * 19 all together which may be called the aota, an acronym for “all of the above”.

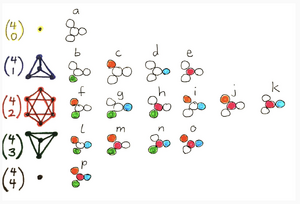

EFG as combination of CPS's

As an EFG, it has no subharmonic factors, that is, no division - only multiplication of them together, which leads to it being ambitonal, not otonal or utonal leaning. While it is nicely “balanced/symmetrical” as all CPSs are, pitches in the resultant system are not evenly distributed. There are two massive gaps of 185 cents, and two places where pitches land almost directly on top of each other.

Blumeyer comma

Those pitches right on top of each other are a feature, not a bug. The pitch 11 * 13 * 17 is 2431, only one off from the pitch 19, which when octave adjusted is 2432. So we end up with this superparticular ratio, 2432:2431, called the Blumeyer comma.

name value cents prime exponent vector

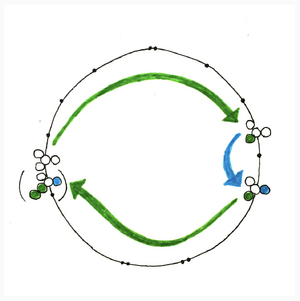

Blumeyer comma 2432/2431 0.71200249782 | 7 0 0 0 -1 -1 -1 1 >

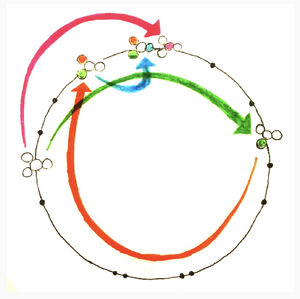

Blumeyer comma visualized

Perhaps, given its tiny size, it would be better called the Blumeyer schismina.

Lattice Play

Since the EFG system of Yer includes both 11 * 13 * 17 and 19 as pitches, that means the comma exists as an interval in the scale. Since it’s so tiny, though, the two notes related by it can hardly be treated as separate. This means that when you go to draw this tuning out as a JI lattice, you can do something you wouldn’t normally do, which is set a couple points right together.

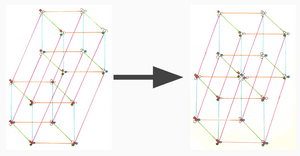

Blumeyer comma conflation

You could think of this lattice as a pair of cubes. One is an Euler-Fokker genus of [11, 13, 17]. The other is that same Euler-Fokker genus, just with every node multiplied by 19. That’s why every point in the second cube has the same set of circles colored in as the analogous one in the other cube, just with the magenta 19 filled in as well.

So every point in the first cube is connected to the analogous node in the second cube. Normally the node for 19 would not have any direct connection with the node 11, 13, 17. It only directly connects with one node in the other cube, its analogous one, the unison. But here we see that not only is there another effect going on connecting these two nodes, that effect goes beyond connecting them, it straight up conflates them.

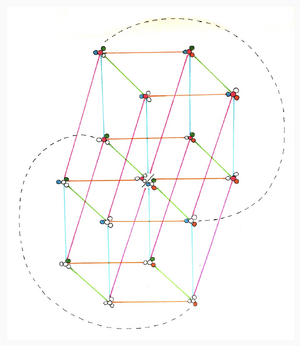

But that's not all; recall that there were two other pairs of pitches that were almost the same, too. One of those pairs has such simple sounding members, it may surprise you: 13 and 11 * 19. In this view, we can see that they are nowhere near each other. So we’ll have to nudge our lattice around a little bit more; that's how we arrive at the final lattice shown in the introduction. There, the three pairs of intervals in the center connected by short solid black lines can be modulated between almost unnoticed.

Blume comma conflation - before

Yama comma

The reason why 13 and 11 * 19 are so close is that it turns out there is *another* comma existing as a step in this tuning of 11’s, 13’s, 17’s, and 19’s. If we move by an eleventh, then a nineteenth, and then down a thirteenth, we end up right back where we started, off by 8.303 cents. That's the yama comma.

name value cents prime exponent vector
yama comma 209/208 8.303296728 | -4 0 0 0 1 -1 0 1 >

Another consequence of the yama comma is that a couple “extra” lattice connections appear. These are drawn in dotted green on the lattices in the introduction. If we move by an eleventh, a seventeenth, and another eleventh, we end up right back where you started, off by 7.591 cents, or in other words, one yama comma minus one Blumeyer comma. We call this the Blume comma.

name value cents prime exponent vector
Blume comma 2057/2048 7.59129422992 | -11 0 0 0 2 0 1 >
Blume comma visualized

The idea is that if you were to try to go from 11 * 17 by an eleventh to 11 * 11 * 17, well, you’re not really allowed to do that because the EFG does not duplicate factors (you can’t have two 11’s), but since 11 * 11 * 17 is essentially 1, we’ll permit it.

Analogously, you can move from 11 * 13 * 17 * 19 by an eleventh to 11 * 11 * 13 * 17 * 19, or just 13 * 19. Though, for symmetry, we actually do 13 * 19 / 11 rather than 11 * 11 * 13 * 17 * 19.

And as long as we're changing the angle we look on the cube to bring the right pairs of pitches together, we have also taken care to balance these dotted lines with the real 11 lines, so that it’s the zig to the zag of the real 11, more strongly suggesting the dimension of the 11th harmonic’s relationship to that of the 17th (i.e that two 11's make a 17).

Now we could have drawn dotted lines connecting 11 * 13 * 17 to 13, but declined, considering that the ability to move between these two pitches is already achievable by modulating from from 11 * 13 * 17 to 19, then moving by that 11 to 11 * 19, then modulating to 13. The same goes for the connection between 11 * 17 * 19 and 19. This would be pretty obvious on the cycle view, because we’d just be drawing a dotted line right alongside an existing solid one.

Here’s something else interesting: we can move by four 11’s in a row. We can move from 17 * 19 to 11 * 17 * 19, which can be shifted to 13 * 17, then move to 11 * 13 * 17, which can be shifted to 19, then move to 11 * 19, which can be shifted to 13, then move to 11 * 13.

You can also move by 3 11’s in a row on the left and right edges; for the other factors, you can only ever move by two of them in a row (in sad 17’s case, only one spot where you can do that, which happens to be in parallel to the spot where you can 4x by 11).

Comma pumps

Yer is pure JI, but due to the five places where it boasts two pitches very close together but with very different harmonic compositions, it can achieve zero comma pumps by “comma shifting” at those key points, returning to exactly their original pitch.

In Yer, there are three classes of pumps of the Blumeyer comma. One way of defining them is by which harmonic is opposite the 19. So in class a, it’s the 11, in b it’s the 13, and in c it’s the 17.

Yer comma pump families

This diagram shows real instances of these pumps in Yer and then rotates each of these three diagrams by a different amount so that the 19 would be horizontal across the top in each one, in order to better bring out their differences in shape.

Each of these families has a mirror image. You can achieve it by either reversing the order you move by those harmonics, or flipping the harmonic directions you move (from harmonic to subharmonic, or vice versa). I call a reversal like this a “counter”, as in “counterclockwise”, (because in this case we are reversing a cycle, so counter is appropriate, and there is another place soon where I need the word “reverse” and I didn’t want to use “retrograde”) and I call a flipping like this an inversion, as in inverting a fraction’s numerator and denominator, which it is.

That is you could counter:

up 19, down 17, down 13, down 11

to

down 11, down 13, down 17, up 19

Or you could invert:

up 19, down 17, down 13, down 11

to

down 19, up 17, up 13, up 11.

The difference between a counter and an invert is only in which direction you flow through the comma; the shape is the same between them, i.e. the mirror image of the original. So if you do *both*, you stay in the same position/shape, but the flow through your shape is in the opposite direction. That’s “reverse”.

Yer comma pump operations

There’s another operation which does not change the shape, and that’s “cycling” which is changing which of the four notes you start on.

Yer comma pump operations - cycle

Finally there are several possible rotations of each comma within Yer, a rotation being a changing of the position within the octave circle. There are five each, to be exact: one for where each of its four corners touches the Blumeyer comma interval, plus one which uses the Blume commas.

Yer comma pump operations - rotate

So with three comma pump families, each with four total forms (base, inverse, converse, and reverse), each of those with four possible starting positions or cyclings, and each of those with five possible rotations, Yer boasts 3 * 4 * 4 * 5 = 240 total possible comma pumps.

I haven’t much explored the Blume comma’s pumps, but those would be much simpler. Basically for each 17 interval, make a long skinny triangle across the circle out of its two 11s.

So you could write music with these comma pumps. The first piece I’ve written with Yer, in fact, uses three variations on one comma pump family, interrupting each other to create a sort of “meta-pump”. That’s a horrible term, though, don’t use that. Because they’re not really full pumps anymore, they’re partial ones. I’ll think of something later.

Another Lens

There’s another lens I’d like to look at Yer through. This will take a few steps. As I mentioned before, you can think of our EFG as two EFGs of the next smallest order, with each node in one connected to the analogous node of the other. EFGs build on each other like that. And in fact, of this order 4 EFG, you could pick any other of our four harmonics, not just 19 works this way, split the lattice on it, and you’ll end up with a pair of cubes. Here I’ve shown all of these, just without the bonds of the harmonics dividing them.

Yer - paired cube faces of tesseract

Considered as a whole, these are the 8 cubic faces of the tesseract, or hypercube, of our order 4 EFG.

But 19 still is the more interesting one. First, look at the lattice view on the left, to get a sense of the blue cube, the base EFG, and the red cube, which represents the EFG with every node multiplied by 19. Next, look at the cycle view, and see how that coloring transfers there.

Yer - two cubes off by 19

Now suppose we take the red cube and the blue cube, and for each of them instead color code for their constituent harmonic intervals. The blue becomes this on the left, the red becomes that on the right. Now it becomes clear how rotating the blue cube around the cycle by a 19th brings those three pairs of pitches together.

Yer - two cubes separated by 19, relationship

Here’s an extreme subtlety, but worth mentioning I think in case it confuses anyone else as bad as it did me. It’s really easy to look at these two diagrams and think “mirror image” (across the vertical axis), but that’s deceptive. The unison and the aota are *not* connected by a diameter here. They are not on opposite sides of the octave circle. That is because a movement by all intervals is not 600 cents, but only 594. Remember that the 19th harmonic is 298 cents, and the other three harmonics in the system together are almost exactly the same. So if you wanted to orient Yer so that its line of symmetry is perfectly vertical (which I submit makes a good amount of sense) Then you must also stay aware that the unsion and aota are not at the 180 degree and 0 degree positions, but more like 179.5 and 0.5 degree positions.

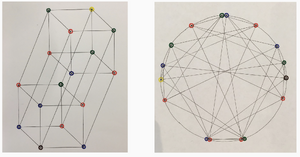

Yer - EFG nodes

We can also delve a little deeper into Yer in terms of its constituent CPS’s. In the lattice view on the left, you can see how the unison and aota are opposite extreme corners, and their immediately adjacent nodes are all tetrany members — choose 1 wrapping unison, choose 3 wrapping the aota — and all nodes two moves away from them are in the hexany. In other words, no node of a given color touches any other nodes of its own color. Only green touches yellow, only blue touches brown, and red buffers between green and blue. I could have drawn these diagrams with the black lines replaced/augmented with dotted lines or arrows of color indicating the two types they each bridge.

Then here’s what we get when we actually render the CPSs and their connections within themselves. You’ll notice that these lines are completely different from the black ones. The black ones connect pitches separated by single harmonic factors. The nature of CPSs, though, is that pitches are connected when they are separated by two harmonic factors. For example, in the choose-1 tetrany, the members are just the single harmonics 11, 13, 17, 19. So 11 and 17 are related not by a single harmonic factor, but by 11:17 or 17:11; two factors.

EFG lines on cycle & lattice

In the tetrany, every node connects to every other node, But in the hexany that is not the case. Remember the hexany is our choose-2 set, for consider for example the pair of nodes 11*13, and 17*19. They do not share a factor, so they are not connected. The pair of nodes 11*13 and 11*19, however, share an 11, so the 11’s cancel out, and again you have a relationship based on two factors, in this case 13:19. This view is terribly busy, though. Too much information. But if you pull away the black lines for single harmonic relationships, which we already talked about a lot with respect to commas and pumps thereof...

EFG as lattice & cycle

...you can actually begin to see stuff. In the lattice view on the left, notice how the tetranies take form as tetrahedrons and the hexany as an octahedron. In the cyclical view on the right, you can see how the choose-1 and choose-3 tetranies, the blue and green shapes, are reflections of each other across a vertical line drawn down this circle, as well as how the choose 2 hexany is symmetrical across the same line, and the remaining two notes -  the unison and the aota - are located symmetrically to each other. You could write music with just these CPSs.

Intervals

Yer interval class matrix
1 13⋅17⋅19 17 11⋅13 11⋅13⋅17 19 17⋅19 11⋅13⋅19 11 11⋅13⋅17⋅19 11⋅17 13 11⋅19 13⋅17 11⋅17⋅19 13⋅19
1 0 42.9960874 104.9554095 191.8456041 296.8010136 297.5130161 402.4684256 489.3586203 551.3179424 594.3140298 543.7266481 359.4723382 351.1690415 254.5169287 246.213632 61.9593221
13⋅17⋅19 0 61.9593221 148.8495167 253.8049262 254.5169287 359.4723382 446.3625329 508.321855 551.3179424 586.7227355 402.4684256 394.1651289 297.5130161 289.2097194 104.9554095
17 0 86.89019463 191.8456041 192.5576066 297.5130161 384.4032108 446.3625329 489.3586203 551.3179424 464.4277477 456.124451 359.4723382 351.1690415 166.9147316
11⋅13 0 104.9554095 105.667412 210.6228215 297.5130161 359.4723382 402.4684256 464.4277477 551.3179424 543.0146456 446.3625329 438.0592361 253.8049262
11⋅13⋅17 0 0.7120024978 105.667412 192.5576066 254.5169287 297.5130161 359.4723382 543.7266481 552.0299449 551.3179424 543.0146456 358.7603357
19 0 104.9554095 191.8456041 253.8049262 296.8010136 358.7603357 543.0146456 551.3179424 552.0299449 543.7266481 359.4723382
17⋅19 0 86.89019463 148.8495167 191.8456041 253.8049262 438.0592361 446.3625329 543.0146456 551.3179424 464.4277477
11⋅13⋅19 0 61.9593221 104.9554095 166.9147316 351.1690415 359.4723382 456.124451 464.4277477 551.3179424
11 0 42.9960874 104.9554095 289.2097194 297.5130161 394.1651289 402.4684256 586.7227355
11⋅13⋅17⋅19 0 61.9593221 246.213632 254.5169287 351.1690415 359.4723382 543.7266481
11⋅17 0 184.2543099 192.5576066 289.2097194 297.5130161 481.767326
13 0 8.303296728 104.9554095 113.2587062 297.5130161
11⋅19 0 96.65211277 104.9554095 289.2097194
13⋅17 0 8.303296728 192.5576066
11⋅17⋅19 0 184.2543099
13⋅19 0
Yer interval classes
ratio type count prime exponent vector cents gap between available interval classes lower limit interval to nearest in Yer cents difference up cents different down (to prove how they're right in between inverse ratio inverse cents
2431:2432 3v1 1 | 7 0 0 0 -1 -1 -1 1 > 0.7120024978 0.7120024978 1199.287998
208:209 2v1 2 13 -> 11 19 8.303296728 7.59129423 1191.696703
4096:4199 3v0 2 1 -> 13 17 19 42.9960874 34.69279067 48:49 35.69681207 - 35.69681207 - 1157.003913
247:256 2v0 4 13 19 61.9593221 18.9632347 24:25 70.67242686 - 70.67242686 - 1138.040678
136:143 2v1 2 17 : 11 13 86.89019463 24.93087253 20:21 84.46719347 - 84.46719347 - 1113.109805
209:221 2v2 1 11 19 : 13 17 96.65211277 9.76191814 1103.347887
16:17 1v0 8 16:17 104.9554095 8.30329673 1095.044591
143:152 2v1 2 11 13 : 19 105.667412 0.7120025 1094.332588
3328:3553 3v1 1 13 : 11 17 19 113.2587062 7.5912942 15:16, 15:14 111.7312853 -, 119.4428083 - 111.7312853 -, 119.4428083 - 1086.741294
323:352 2v1 2 11 : 17 19 148.8495167 35.5908105 32:35 155.1396203 - 155.1396203 - 1051.150483
247:272 2v1 2 17 : 13 19 166.9147316 18.0652149 1033.085268
187:208 2v1 2 13 : 11 17 184.2543099 17.3395783 9:10 182.4037121 - 182.4037121 - 1015.74569
128:143 2v0 4 1 : 11 13 191.8456041 7.5912942 1008.154396
17:19 1v1 4 17:19 192.5576066 0.7120025 25:28 196.1984787 - 196.1984787 - 1007.442393
286:323 2v2 1 11 13 : 17 19 210.6228215 18.0652149 8:9 203.9100017 - 203.9100017 - 989.3771785
3553:4096 3v0 2 1 : 11 17 19 246.213632 35.5908105 7:8 231.174094 - 231.174094 - 953.786368
19:22 1v1 4 19 : 11 253.8049262 7.5912942 946.1950738
221:256 2v0 4 13 17 254.5169287 0.7120025 7:6 266.870906 - 266.870906 - 945.4830713
11:13 1v1 4 11:13 289.2097194 34.6927907 910.7902806
2048:2431 3v0 2 11 13 17 296.8010136 7.5912942 903.1989864
16:19 1v0 8 297.5130161 0.7120025 5:6 315.641287 - 315.641287 - 902.4869839
209:256 2v0 4 11 19 351.1690415 53.6560254 40:49 351.3380991 - 351.3380991 - 848.8309585
152:187 2v1 2 11 17 : 19 358.7603357 7.5912942 841.2396643
13:16 1v0 8 13:16 359.4723382 0.7120025 840.5276618
2176:2717 3v1 1 (11*13*19)/(17*2^7) 384.4032108 24.9308726 4:5 386.313714 - 386.313714 - 815.5967892
176:221 2v1 2 11 : 13 17 394.1651289 9.7619181 805.8348711
256:323 2v0 4 17 19 402.4684256 8.3032967 797.5315744
323:416 3v0 2 17 19 13 438.0592361 35.5908105 7:9, 25:32 435.0840953 -, 427.3725723 - 435.0840953 -, 427.3725723 - 761.9407639
17:22 1v1 4 17 11 446.3625329 8.3032968 753.6374671
209:272 2v1 2 17 : 11 19 456.124451 9.7619181 743.875549
13:17 1v1 4 464.4277477 8.3032967 16:21, 49:64 470.7809073 -, 462.3481871- 470.7809073 -, 462.3481871- 735.5722523
187:247 2v2 1 11 17 : 13 19 481.767326 17.3395783 718.232674
2048:2717 2v1 2 11 13 19 489.3586203 7.5912943 3:4 498.044999 - 498.044999 - 710.6413797
4199:5632 3v1 1 (11*2^9)/(13*17*19) 508.321855 18.9632347 691.678145
19:26 1v1 4 19:26 543.0146456 34.6927906 656.9853544
187:256 2v0 4 11 17 543.7266481 0.7120025 35:48 546.8153805 - 546.8153805 - 656.2733519
8:11 1v0 8 8:11 551.3179424 7.5912943 648.6820576
221:304 2v1 2 13 17 : 19 552.0299449 0.7120025 647.9700551
176:247 2v1 2 13 19 586.7227355 34.6927906 5:7 582.512193 - 582.512193 - 613.2772645
32768:46189 4v0 1 | 15 0 0 0 1 1 1 1 > 594.3140298 7.5912943 605.6859702

Scala file

 ! yer.scl
 !
 Yer, EFG of 11, 13, 17, 19
16
 !
4199/4096
17/16
143/128
2431/2048
19/16
323/256
2717/2048
11/8
46189/32768
187/128
13/8
209/128
221/128
3553/2048
247/128
2/1

Video explanation

More details are presented in this video: Yer (pitch system)

Listening

Douglas Blumeyer - Tsraxcfaubdj

Douglas Blumeyer - Blumeyer Comma JI Unpump

Chris Vaisvil - The Figment

Chris Vaisvil - Now Yer Talkin'

Tritave-Based Yer

One could imagine a tritave-repeating variation of Yer, where 2's are out but 3's are in (the EFG of 11, 13, 17, 19 remains but is tritave-reduced instead).

See also

Musical Patterns - select Tsraxcfaubdj (GitHub page is here to explore the programmatic reasoning behind how this piece uses Yer: https://github.com/MusicalPatterns/pattern-tsraxcfaubdj)

Hilim13, another tridecatonic tuning in the 2.11.13.17.19 subgroup, JI, designed by Gene Ward Smith

Gjaeck, another tuning in the 2.11.13.17.19 subgroup, a tempered MOS of 57ed2, also designed by Douglas Blumeyer
